This DynaGen generator controller makes using your generator easy. It provides instrumentation, protection, and control like no other. Set it to AUTO for automatic starting or with the push of a button, manually start it when needed. Whether you are in the dead of winter or a hot tropical climate, it is designed to work trouble-free. It protects itself from power dips and surges, vibration, and thermal shock.
Our industrial grade alternators produce constant clean power for you and your family, making it safe to use your sensitive electronics such as computers, TVs and even the HVAC system that keeps you comfortable. You have nothing to worry about with it’s maintenance free design and 2-Year Warranty.
The structural frame is made from corrosion resistant steel, assembled using all stainless steel fasteners and finished with powder coat paint. They are equipped with rubber vibration isolators, resulting in quieter operation. Covered by a lifetime limited warranty.

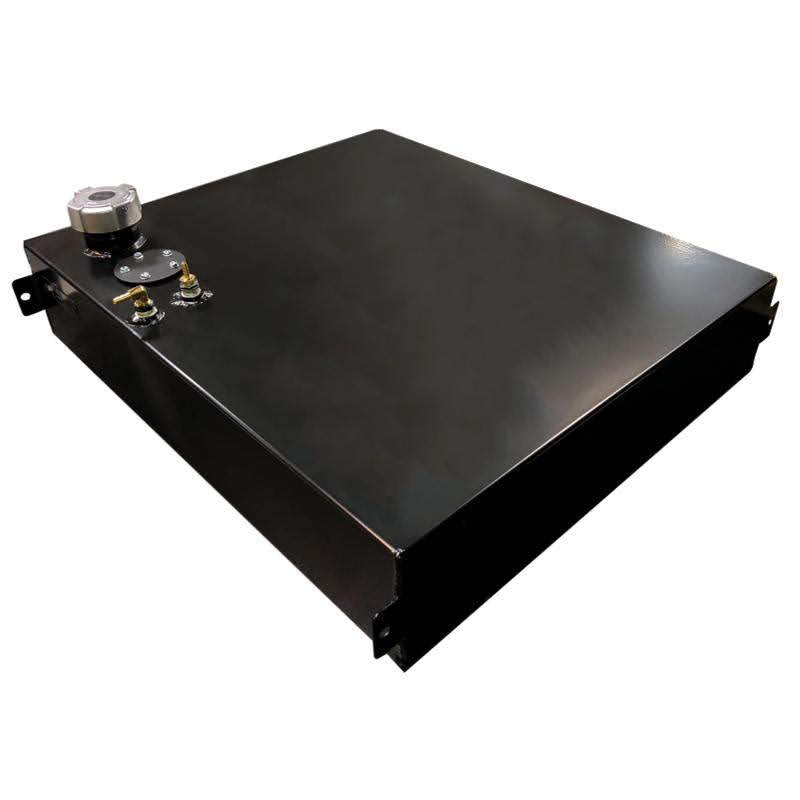

The 12 gallons/45-litre internal fuel tank is steel welded with a black powder coated finish. It has a 2” NPT vented fill cap for easy refuelling. The controller monitors your fuel level using the electronic gauge, and it also comes with a mechanical one, so you’ll never have to worry about running out of fuel.
Our weather resistant canopy enclosure is designed to be compact, durable and aesthetically pleasing while maintaining proper ventilation and noise reduction. Constructed with all stainless steel fasteners and finished with a powder coated paint. The large, lockable and removable hinged panels allow for easy access.
Custom weather resistant wiring harnesses provide protection from failures and the elements. Using double-crimp terminals and adhesive-lined shrink tube, the potential for loose connections is eliminated. Color-coded wires provide easy identification and diagnostics.
Due to its strength, flexibility, and resistance to corrosion, stainless steel fasteners are all that is used in the assembly of an AURORA generator.
|Voltage||120 / 240 Single Phase
120 / 208 Three Phase
277 / 480 Three Phase
347 / 600 Three Phase
|Sound Level||65 dB @ 23 Feet|
|Dimensions L x W x H||59" x 33" x 46"|
|Approvals||CSA SPE-1000, EPA|
|Operation and Maintenance||Download|
|Displacement||2.216 liters | 135.2 in³|
|Power Standby||20 kWe|
|Flywheel||SAE J620 7.5|
|Flywheel Housing||SAE 4 Long|
|Total Oil Lube Capacity||10.6 litres | 2.8 US gallon|
|Total Coolant Capacity||7 litres | 1.85 US gallon|
|Approvals||UL / CSA / CE|
|Single Phase||120 / 240 Volt | Singe Phase|
|Three Phase||120 /208 Volt | Three Phase|
|Three Phase||277 / 480 Volt | Three Phase|
|Three||347 / 600 Volt | Three Phase|
